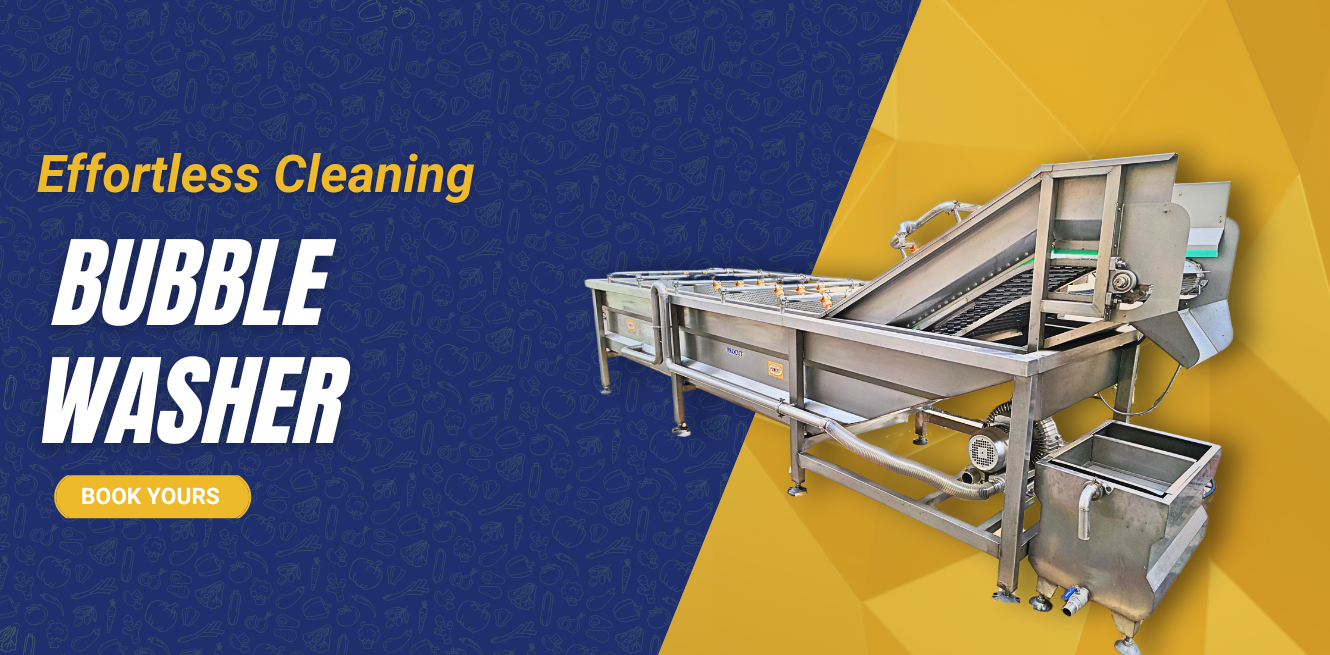

Bubble Washer



A bubble washer machine is a specialized piece of equipment designed to efficiently clean fruits and vegetables. It works by filling a chamber with water and injecting air to create a bubbly solution. The produce is then submerged in this solution, and the gentle agitation of the bubbles helps to remove dirt, pesticides, and other contaminants. After cleaning, the produce is rinsed with clean water to remove any residual solution.

The benefits of using a bubble washer machine are numerous. It can significantly reduce the time and labor required for manual cleaning, while also preserving the quality and appearance of the produce. The efficient cleaning process helps to improve overall food hygiene and safety. Bubble washer machines are widely used in various industries, including food processing plants, restaurants, commercial kitchens, and supermarkets. They are a valuable tool for ensuring the cleanliness and safety of fruits and vegetables.

How does it works

  • Spiral Conveyor: The machine features a spiral conveyor that continuously moves the produce through a heated water bath or steam chamber.
  • Temperature Control: The temperature of the water or steam can be precisely controlled to ensure optimal blanching conditions.
  • Rapid Cooling: After blanching, the produce is quickly cooled to prevent overcooking. This can be achieved by immersing it in cold water or by using a counter-current cooling system.
  • Applications of Bubble Washer Machines

  • Efficiency: Spiral blanching machines can process large volumes of produce quickly and efficiently.
  • Uniformity: The continuous movement of the conveyor ensures consistent blanching throughout the batch.
  • Quality Preservation: Proper blanching helps to retain the color, texture, and nutritional value of fruits and vegetables.
  • Safety: Blanching can help to deactivate harmful microorganisms and reduce the risk of foodborne illness.
  • Benefits of Bubble Washer Machines

  • Efficient Cleaning: The combination of water and air bubbles effectively removes dirt, pesticides, and other contaminants from fruits and vegetables.
  • Gentle Handling: The gentle agitation of the bubbles helps to preserve the quality and appearance of the produce.
  • Time and Labor Saving: Bubble washer machines can significantly reduce the time and labor required for manual cleaning.
  • Improved Hygiene: The use of a bubble washer machine can help to improve overall food hygiene and safety.
  • Specification

    FeatureSpecification
    SuitabilityWashing fruits and vegetables
    Output Capacity1000-3000 kg/hour
    Washing Tank Capacity2.24CBM
    MaterialStainless steel is used in all parts except standard parts such as reducer and electrical parts. Thickness 2mm. Plate belt width 680mm.
    DimensionL5000 x W1450 x H1800mm
    Installed Power* Bubble machine: 2.2KW vortex inflatable oxygen generator
    * High pressure spray: 2.2KW pipeline pump
    * Transmission: 1.5KW motor, frequency conversion control (380V/50HZ)
    * Dustproof and waterproof of motor: Stainless steel cover protection
    Water Consumption0.3-1 t/hour
    Circulating Water SystemThe bottom is equipped with a stainless steel circulating water tank and filter screen.
    Bottom FrameMade of stainless steel square pipe
    Central Control PanelProvides all key operational parameters
